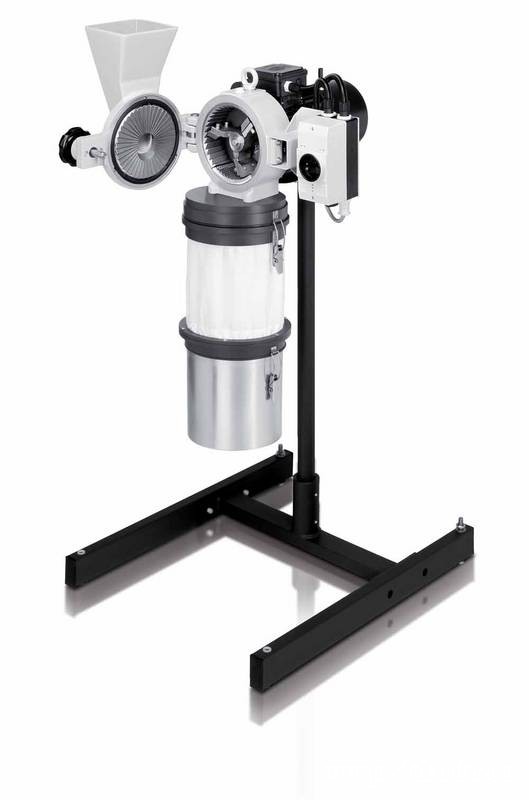

Cross Beater Mill SK 100

Application Examples
cement clinker, chamotte, coal, coke, glass, granite, gravel, gypsum, minerals, ores, oxide ceramics, slag, soils, ...

Product Advantages

suitable for batchwise operation of larger quantities
defined final fineness due to bottom sieves with aperture sizes from 0.12 - 10 mm
exchangeable grinding and sieve inserts
wide range of accessories including various collection and feeding systems, rotors and sieves
easy cleaning
motor brake
central locking device

Features
Applications size reduction
Field of application agriculture, chemistry / plastics, construction materials, environment / recycling, geology / metallurgy, glass / ceramics
Feed material medium-hard, brittle
Size reduction principle impact
Material feed size* < 15 mm
Final fineness ( technical value) < 100 µ m
Final fineness* < 100 µ m
Speed at 50 Hz ( 60 Hz) 2850 min-1 ( 3420 min-1)
Rotor peripheral speed 22 m/ s ( 26 m/ s)
Material of grinding tools hardened steel, stainless steel, cast iron, steel 1.1740 ( for heavy-metal free grinding)
Sieve sizes trapezoid holes 0.12 / 0.20 / 0.25 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm
round holes 3.00 / 4.00 / 5.00 / 6.00 / 8.00 / 10.00 mm
Collector capacity 5 l / optional: 30 l
Drive 1-phase motor / 3-phase motor
Drive power 1.1 kW
Electrical supply data different voltages
Power connection 1-phase / 3-phase
Protection code IP 54
W x H x D closed 560 x 1150 x 700 mm ( with base frame)
Net weight ~ 57 kg ( with base frame)
Documentation Operation & Application Video
Standards CE
* depending on feed material and instrument configuration/ settings
